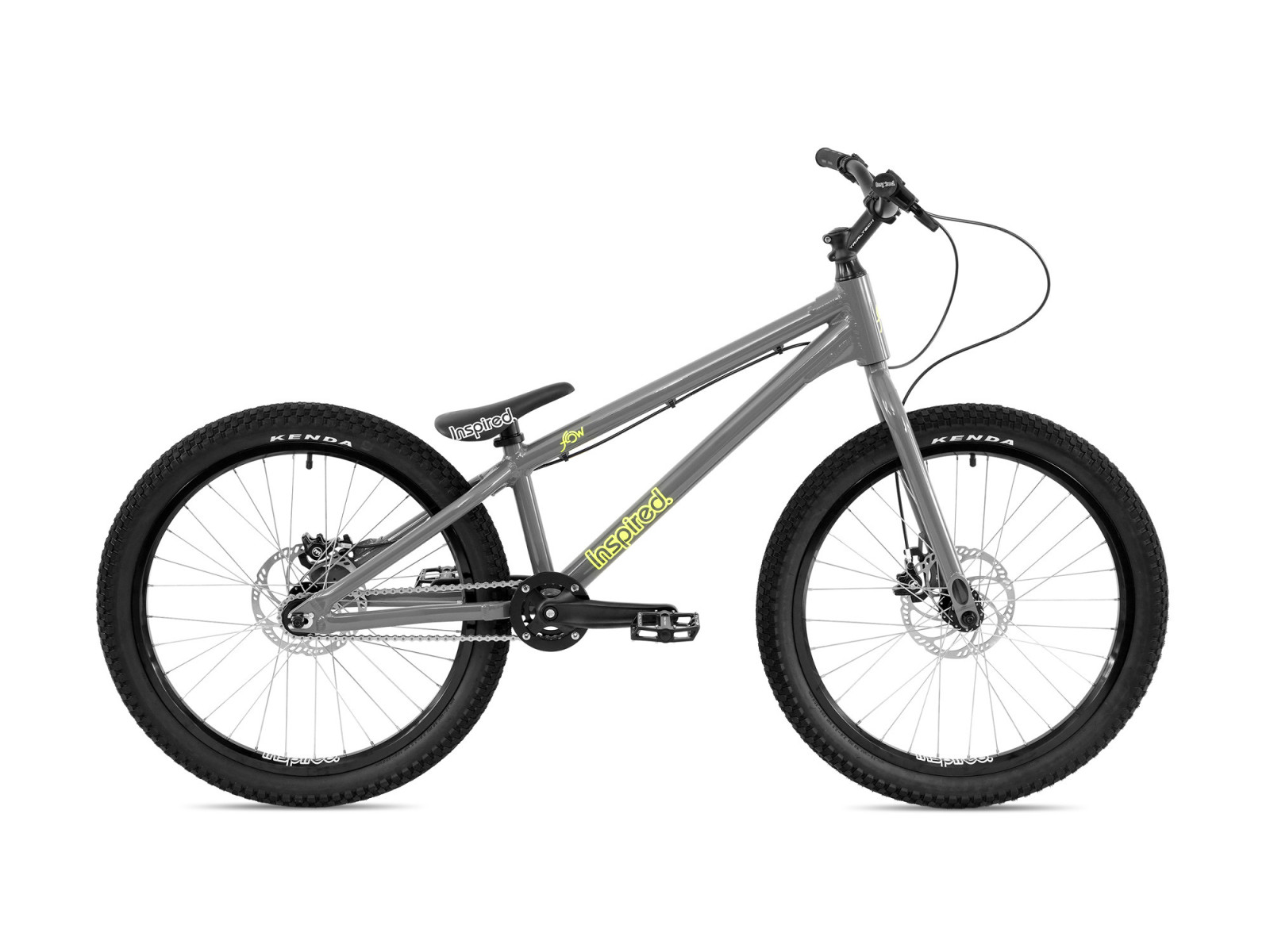

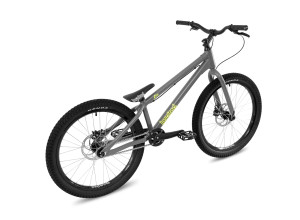

Inspired Flow 24" bike

The Flow 24" is a street bike that gives new riders a proper way into the sport while still offering enough performance and quality for experienced riders to enjoy. The geometry is designed to help riders of all backgrounds develop real bike handling skills. As a first street trials bike, a platform to refine a new style, or just a solid all-rounder to mess about on, the Flow 24" is built to cope with it all. Short chainstays and a compact front triangle make the bike keen to bunnyhop, spin and change direction, while still feeling stable and predictable on manuals and flowing lines.

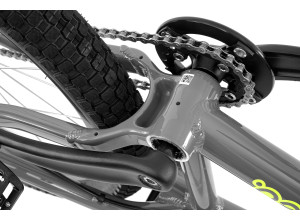

Up front, a 73° head angle and short-offset fork help with more advanced front wheel–based tricks without making the bike nervous. The 6061 aluminium frame has the kind of build quality and detailing you usually see at a higher price point. A top and downtube gusset, unique seatstay/top tube junction and a one-piece forged BB yoke (clearing a 22T chainring) all work together to keep the key load areas stiff and strong. Wall thickness is increased in high-stress zones for extra durability. Steel Flow forks with oversized legs and dropouts further boost toughness so the bike can take real abuse as skills progress.

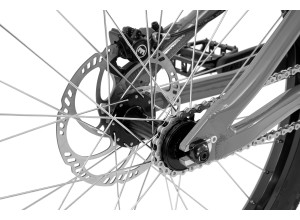

Out back, the frame is optimised around a 22:16 gear (supplied as standard), which allows very compact horizontal dropouts and clean, precise chain adjustment using the CNC-machined alloy chain tugs. Frame and fork both feature CNC-machined disc mounts in the 180 mm position (max rotor size 185 mm), so braking can step up as the rider does. A 44 mm internal head tube accepts standard 1 1/8" forks, but the lower cup can be swapped to run a tapered steerer if you want to upgrade. Spec has been chosen to keep value for money high without compromising function.

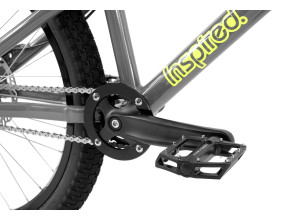

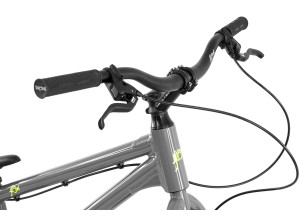

The cockpit uses an Inspired aluminium riser bar and Trialtech forged stem. The drivetrain is based on forged alloy cranks with a sealed bottom bracket, KMC chain, Wellgo nylon pedals and Flow chain tugs. Avid BB5 calipers with FR5 levers provide a simple but effective disc brake set-up (Magura MT4 upgrades are available), while tough Inspired rims on super-smooth Trialtech sealed hubs finish off a durable, progression-ready wheelset.

A wide selection of brakes ensures you get the right bang for your buck: BB5's offer reliable braking performance while removing the risk of damaging hydraulic hoses, while the entry level MT4 provides improved lever response, power and modulation. High end choices like the MT7 HC3 and Hope brakes offer additional adjustability to dial in the right amount of power, reach and travel while ensuring that when you pull the lever in an emergency, the brake will remain locked no matter what.

Frame and Forks

• Frame: Inspired Flow 24"
• Forks: Inspired Flow 24", steel

Wheels

• Front Hub: Trialtech disc, sealed bearings
• Rear Hub: Trialtech disc, sealed bearings, 135mm spacing
• Chain Tensioner: Flow chain tugs
• Rims: Inspired Flow 24"
• Spokes: Stainless PG
• Rim Tape: Kenda
• Inner tube: Kenda
• Tyres: Kenda K-Rad 24 x 2.5"

Brakes

• Options available from drop down list. All options come with 180mm rotors ensuring good performance.

Drivetrain

• Cranks: Trialtech 170mm, screw on
• Front Sprocket: Trialtech 22T
• Chain: KMC S1
• Freewheel: Trialtech Sport 16T, 36 engagement points
• Pedals: Wellgo nylon platforms
• Bottom Bracket: Sealed square taper
• Bashring: 22T trials

Seating

• Saddle: integrated
• Seatpost: integrated

Steering

• Headset: Trialtech 44mm internal, 1.125"
• Stem: Trialtech Forged, 90mm x 35˚
• Grips: Inspired
• Handlebars: Inspired medium riser

Weight

• 11.48kg
